Use Google Stitch designs in Bolt

Google Stitch is an AI-powered design tool that generates app mockups and design systems from prompts. You can use it to visualize your app before writing any code, then bring your designs into Bolt and build out the functionality you need, like data storage, user sign-ins, and web hosting. For a guided walkthrough of turning your Stitch designs into a Bolt app, watch this tutorial.

​

Create your designs in Google Stitch

Google Stitch builds your app mockups using a design system, which is a set of visual rules that defines your app’s fonts, colors, and button styles. You can choose one of Stitch’s preset design systems or describe the visual style you want in your prompt to generate a custom one. Later, you can add this design system to Bolt to make sure new pages and components you build match your original designs.

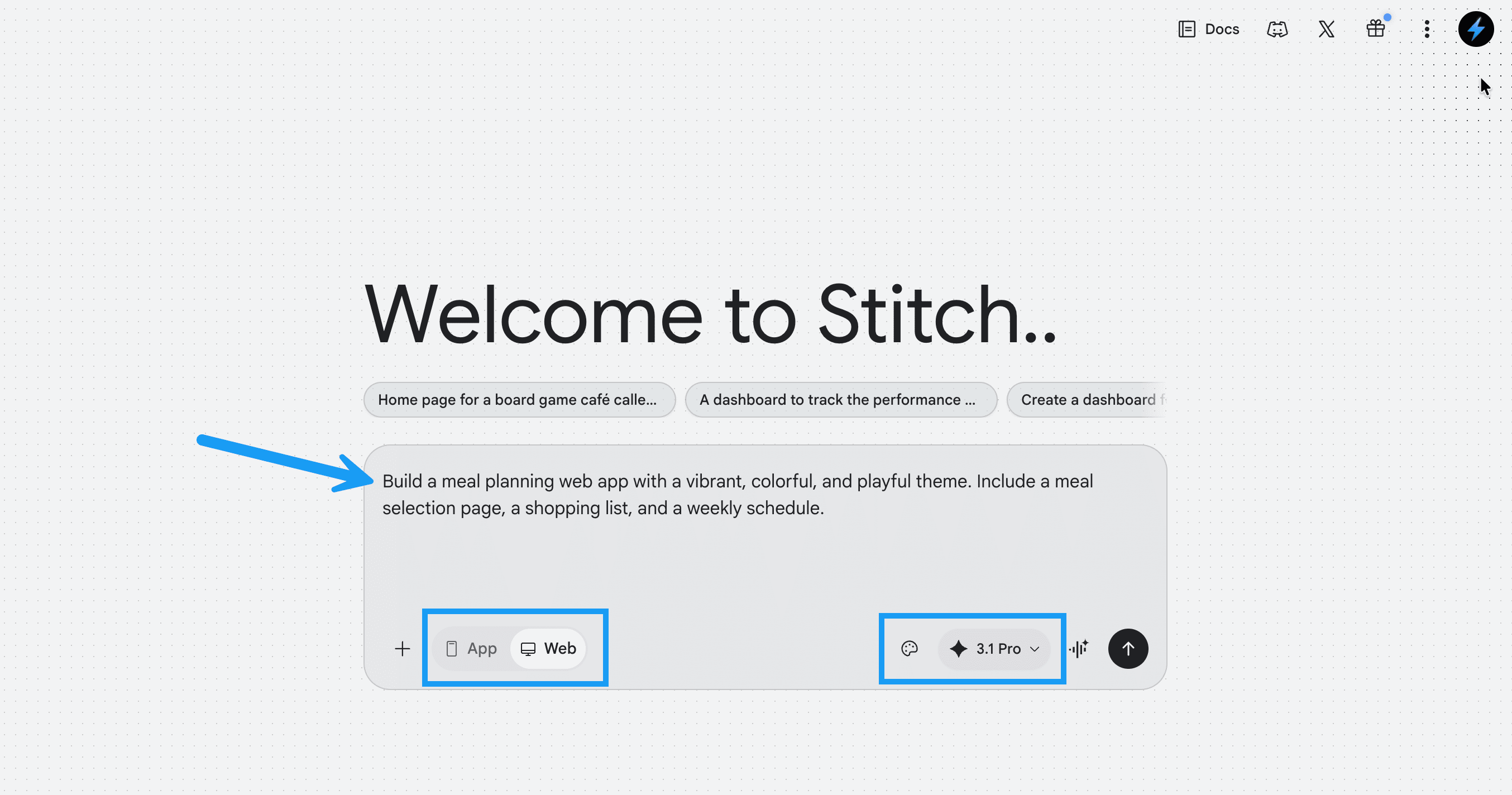

1. In Google Stitch, write a prompt that describes the app you want to build. For example: Build a meal planning web app with a vibrant, colorful, and playful theme. Include a meal selection page, a shopping list, and a weekly schedule.
2. Select the app type (mobile app or website).
3. Optionally, select a design system. You can also describe the visual style you want in the prompt instead.
4. Optionally, select a Gemini model. More advanced models may produce more complete designs.
5. Send your prompt and wait for Stitch to generate your pages and design system.
6. Keep working on your designs until you’re satisfied with how they look. You can adjust the colors, page text and layout, and design system details like fonts and button styles.

For Stitch prompting tips and a full list of available options, see the Stitch documentation.

​

Export your designs to Bolt

When you’re ready to build, export your designs from Stitch directly into Bolt. This automatically attaches screenshots and page HTML and populates a prompt telling Bolt how to build the pages.

1. In Stitch, select the pages you want to build.
2. In the upper-right corner, click Export.
3. Select Bolt, then click Build with Bolt. This opens Bolt, attaches your page screenshots and HTML, and fills in a prompt telling Bolt how to build the pages.
4. When your Stitch attachments finish loading, click Build now.

​

Add a database

At this point, your app’s pages are built out in Bolt, but the data is hard-coded, which means that it’s written directly into the page. To support dynamic content users can add to or change, you need a database.

1. Prompt Bolt to create a database based on your app’s content. For example: Using your knowledge of how the recipes appear in the UI across all the app's pages, create a database to store the recipe and ingredient information. Include properties like names, tags, images, and any other properties needed.
2. After Bolt generates the database, check that the tables and columns match the type of content on your pages. To learn how to view what’s stored in your database, see Tables.

​

Add your Stitch design system to Bolt

You can download your design system from Stitch as DESIGN.md, an open-source file format designed for AI tools like Bolt to read. Then, add it to your Bolt project to keep building with the same visual rules as your original designs.

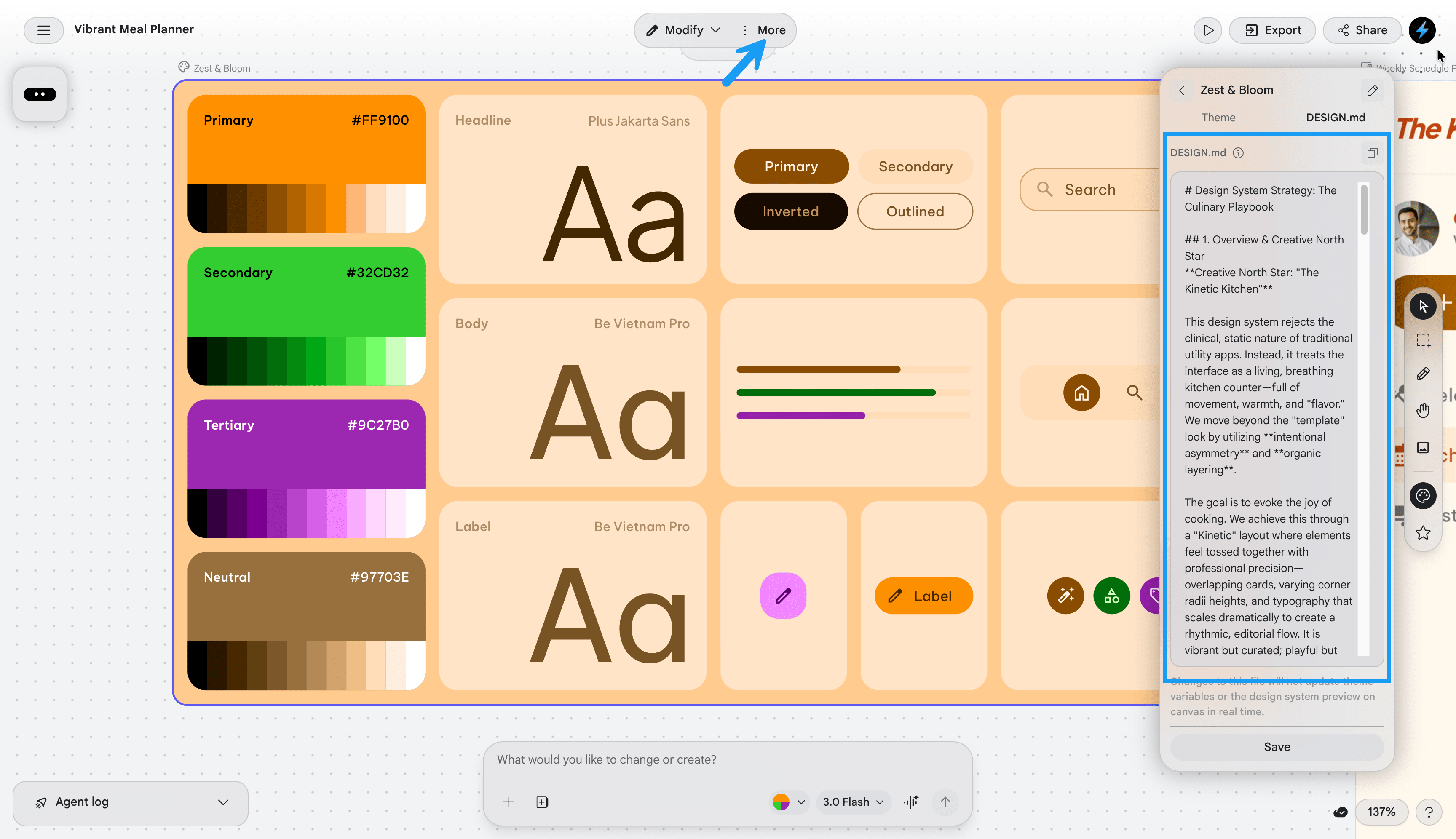

1. In Google Stitch canvas, click the card for your design system.
2. To review its contents, click Modify > Edit, then select the DESIGN.md tab.

3. To download your design system file, click More, then click Download.
4. In your Bolt project, in the chat, attach the document and prompt Bolt to save it. For example: I attached a design system to use with this project. Save this document as a Markdown file in the project root.

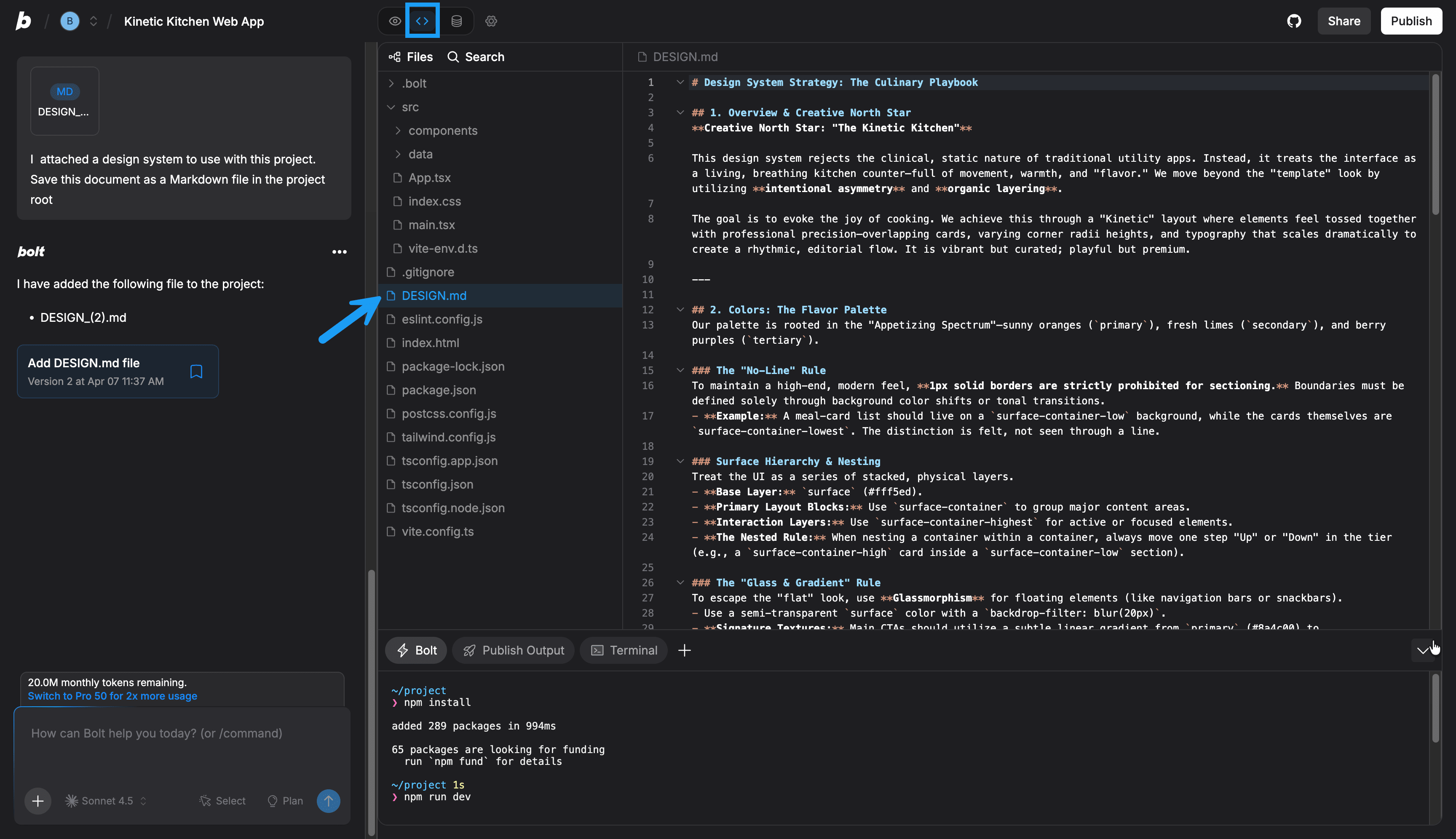

5. To see the contents of your design system in Bolt, click the Code icon in the top menu, then find the design system file in your file structure.


​

Add a design system rule to Project Knowledge

Project Knowledge provides context that Bolt uses whenever you work on your project. Add a design system rule here so you don’t have to remind Bolt to follow your visual guidelines in every prompt.

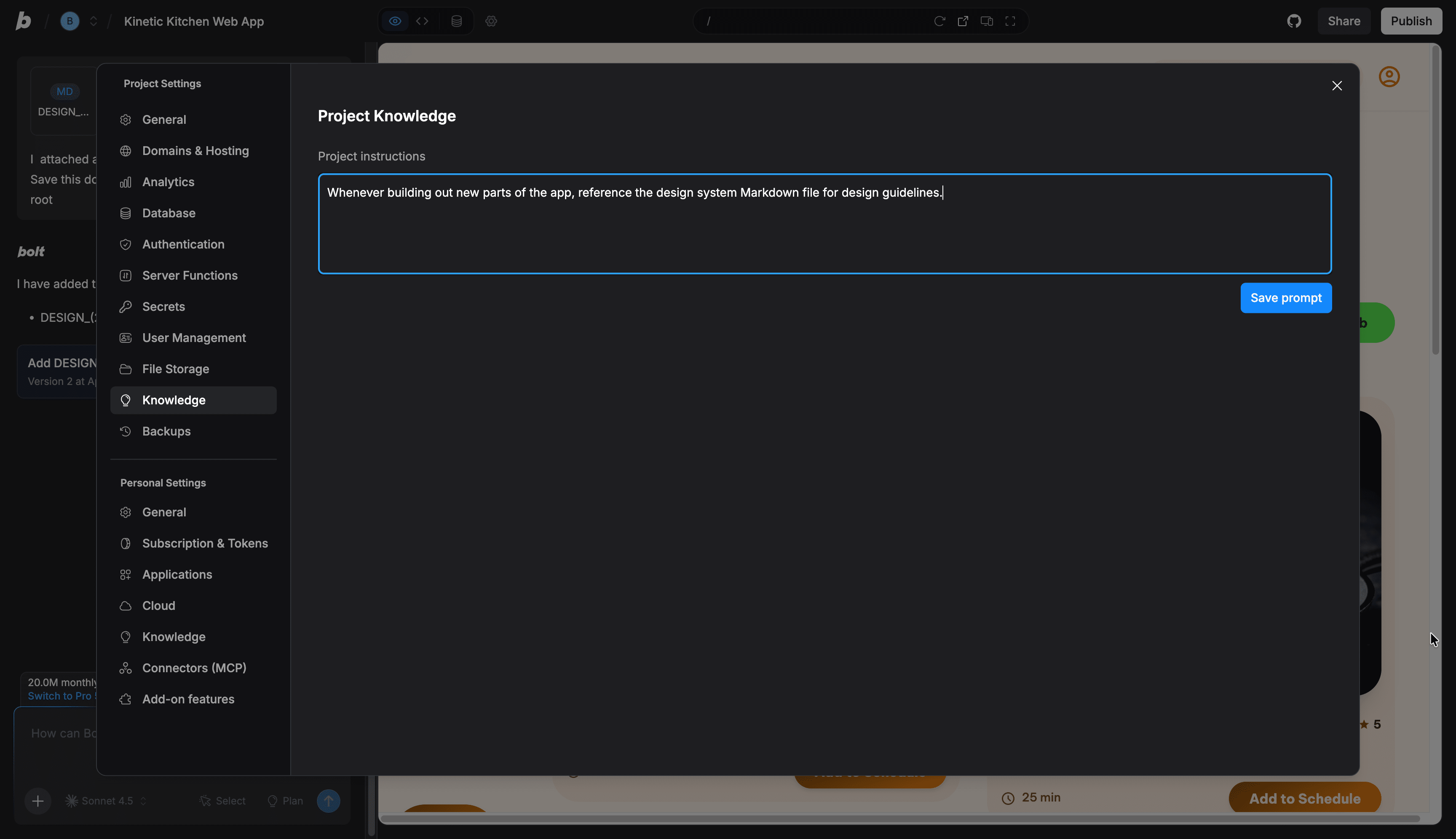

1. In your Bolt project, click the gear icon at the top of the screen, then click Knowledge.
2. Add a rule telling Bolt to reference your design system file when building new parts of the app. For example: Whenever building out new parts of the app, reference the design system Markdown file for design guidelines.

3. Click Save Prompt.

​

Add new Stitch designs to your project

As your app grows, you may want to design additional pages in Stitch and bring them into your existing Bolt project. You can export any page as code and paste it directly into Bolt. For each page you want to add:

1. In Google Stitch, select the page you want to export.

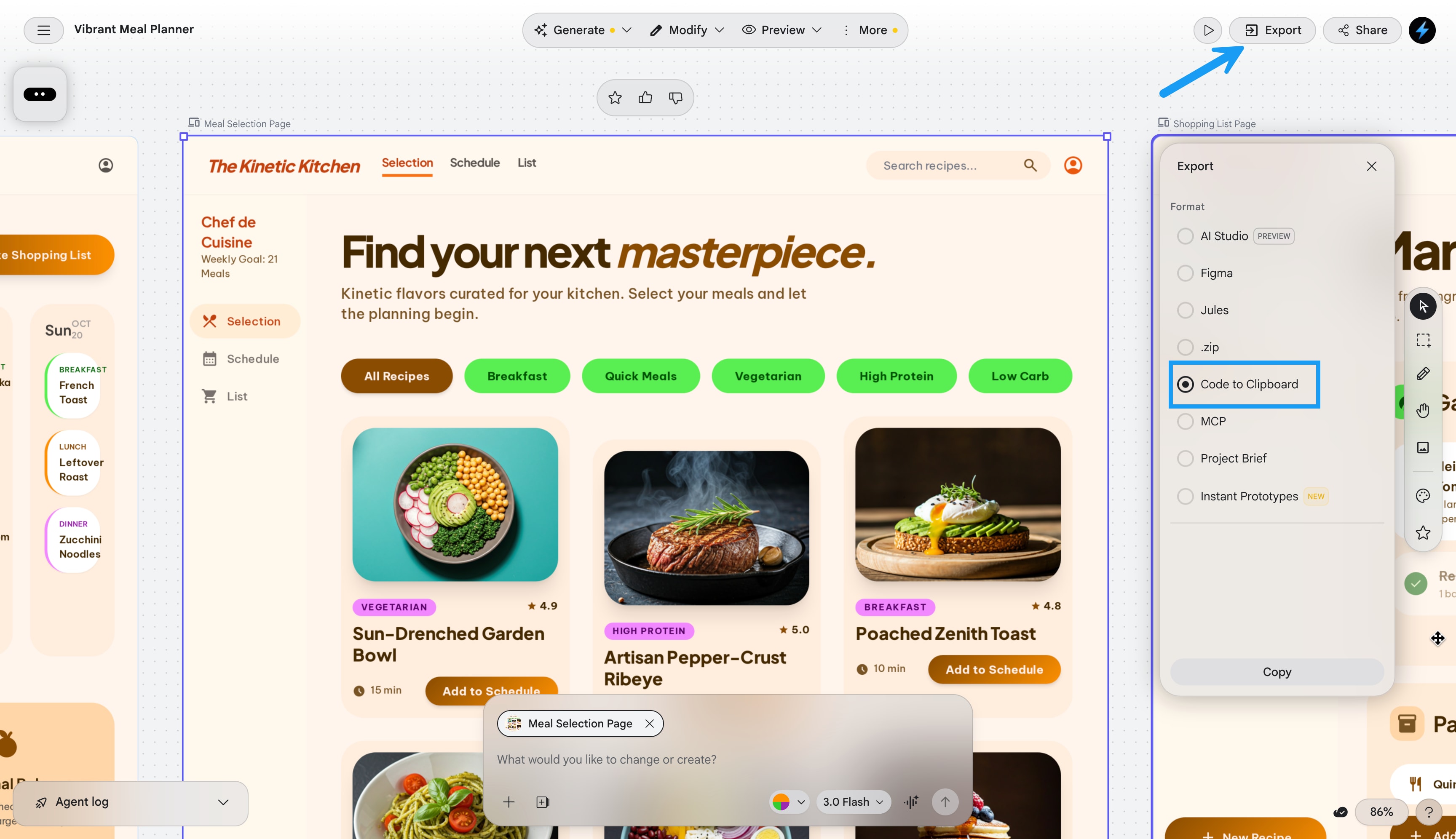

2. Click Export, click Code to Clipboard, then click Copy.

3. In Bolt, paste the code into the chat and prompt it to build out the page. Include instructions to connect the page to the app’s navigation so users can move between pages. For example: Use the attached code to build out the page and connect the page headers to the app navigation.

​

What’s next

Depending on what your app needs, here are a few things you might want to do next:

• Connect an MCP server to bring in data from other sources
• Connect a custom domain
• Publish your project to a live site
